Dryers and sterilizer for pasta factory

Dryer with 4 frames for small pasta factory mod. PR/4

Dryers and sterilizer for pasta factoryFor small pasta, this towel with 4 drawers will remove surface moisture of fresh pasta.

Dimensiones bxpxh 840 x 400 x 900 mm
Weight 60 kg
Hourly output 10 kg/h
Power 0,03 kW
Voltage 3F 230-400V 50/60HZ

 Dryers for small pasta factory mod. VR/20

Dryers and sterilizer for pasta factoryThis new machinery is apt to dry pasta until 12,5% so as be used for a partial moisture reduce for fresh filled pasta or after pasteuirizing process. It is ideal for who wants make dryed pasta in small quantity. Special control system with PLC for a perfect result until 30 kg per cycle. Dryer VR/20 has 20 wood or plastic frames 60×40 cm (23,6×15,7 inches) Temperature and moisture degrees are displaying and controlled by PLC who determine cycles needs to reach dryed pasta.

Dimensiones bxpxh 1270 x 850 x 1900 mm
Weight 150 kg  Width of looms  20 – 600x400x70
Power consumption 4 kW  Voltage 3F 230-400V 50/60HZ

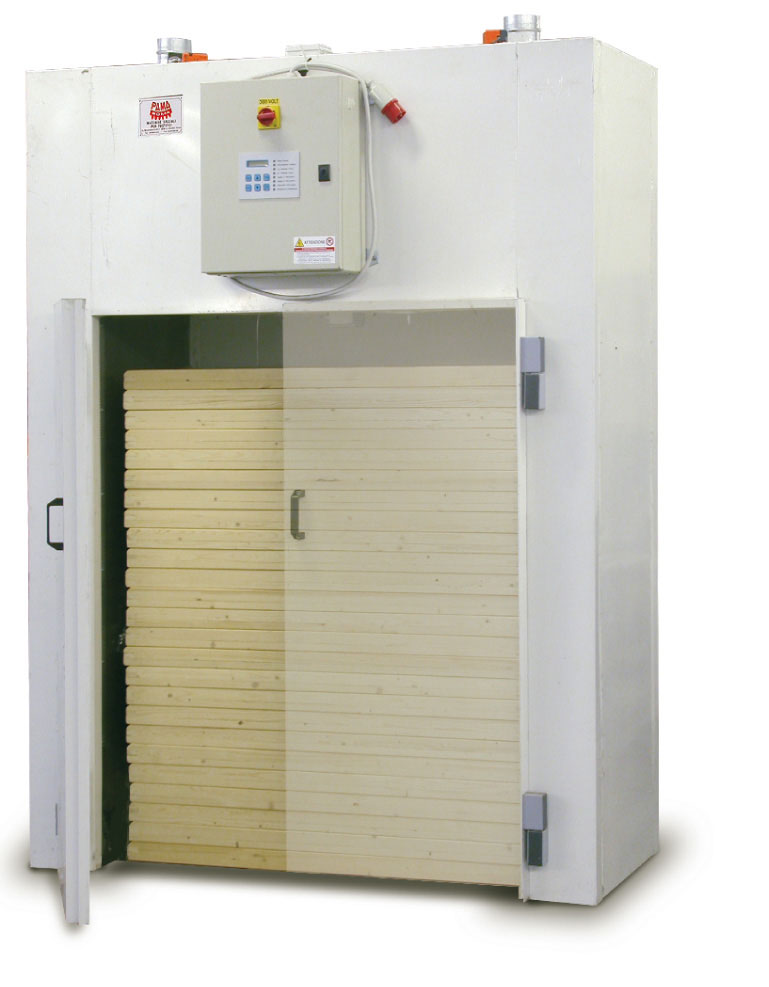

Drying cells for pasta makers

Dryers and sterilizer for pasta factoryThe machine packs, pre-packs and dries small and large size pasta and pasta with filling.Drying cycle capacity: 400 Kg. The drier is essential for the packaging, pre-packaging and drying of small and large-size pasta and for pasta with filling. It also let to dry pasteurised pasta before the packing phase. The optimization of the drying process over the years has enabled us to ensure absolute quality in the production of long and short pasta. It is composed as follows:
? panels (thickness mm 50) composed of steel sheets with anallergic epoxy coating on the outer surface, filled with polyurethane foam. They guarantee improved insulation, sound-proofing and a stronger frame.
? function control panel with a hygrometer and a thermostat for theDryers and sterilizer for pasta factory automatic adjustment of the humidity and temperature values
? automatic humidity discharge
? ventilation system with balanced fans that generate little noise (a few decibels), are heat-proof, can move a significant air quantity and are controlled by a clock for the intermittent movement and the change in the direction of rotation. The air is heated by means of electrical resistances (hot water heat exchangers can also be provided; to be separately quoted)
? 1 cart with teflon swivelling wheels; it is equipped with 25 pinewood or beech-wood frames with a food-grade polyester grid where smallsize pasta can be dried.

Dimensiones bxpxh mm
n. 25-600x1200x60
n. 50-600x1200x60
n 100-600x1200x60
Drying cycle capacity
100 kg
200 kg
400 kg
5 kW
8,6 kW
17 kW
3F 230-400V 50/60HZ
3F 230-400V 50/60HZ
3F 230-400V 50/60HZ

 Pre-dryings Trabatto to pre-dry fresh, pasteurised and filled pasta

Dryers and sterilizer for pasta factorySuitable for pre-drying of fresh, stuffed, pastorizzate. Il movement, ventilation and heating allow the separation of the product, preserve the original shape and dry surface, so ‘as poterloconfezionare easily, eliminating a percentage of humidity’ and prolong conservation.

Dimensiones bxpxh mm
280 kg
320 kg
530 kg
Hourly output
100 kg/h
200 kg/h
300 kg/h
Width of looms
420 mm
600 mm
600 mm
Power consumption
7,5 kW
7,5 kW
12,5 kW
3F 230-400V 50/60HZ
3F 230-400V 50/60HZ
3F 230-400V 50/60HZ

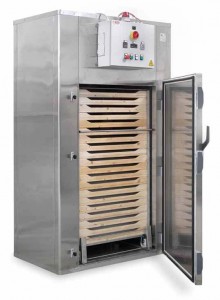

Sterilizer for pasta mod. ST20

Dryers and sterilizer for pasta factoryCell sterilization 1 trolley (20 frames) designed and built for the heat treatment of food products packed in bags or trays. Structure performed with insulated panels at high temperature in sheet AISI 304 for a perfect thermal insulation. Heating with electric heaters. Temperature control and production cycle sterilization of centralized control panel on the machine.

Dimensiones bxpxh 1360 x 830 x 2400 mm
Weight 310 kg
Hourly output 60 kg/h max
Chassis dimensions 850x600x70 mm
Consumption power 8 kW
Voltage 3F 230-400V 50/60HZ

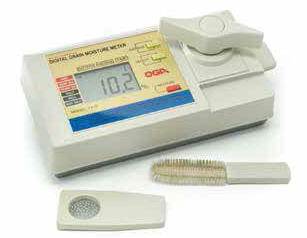

Humidity analyzer meter of dry pasta

Dryers and sterilizer for pasta factoryThe system makes it possible to accurately measure the moisture content of the most common types of cereals without the use of the conversion table. It ‘currently the best selling moisture meter for pasta pocket in the world. Action: in 2 seconds provides the exact moisture on the LCD display.

Technical catalog
